Thermostat Wiring Explained: A Guide for HVAC Professionals

Thermostat wiring plays a crucial role in the efficiency and functionality of HVAC systems. A properly wired thermostat ensures seamless communication between the HVAC unit and the temperature control system, optimizing energy consumption and maintaining indoor comfort. However, incorrect thermostat wiring is one of the leading causes of HVAC system failures in the USA, often resulting in inefficient heating and cooling, increased energy bills, and costly repairs.

This guide provides HVAC professionals with an in-depth thermostat wiring guide, covering everything from basic wiring principles to troubleshooting common issues. It also includes a detailed breakdown of smart thermostat installation and how HVAC companies can grow their business through an HVAC SEO Agency.

The Importance of Proper Thermostat Wiring

Incorrect thermostat wiring can lead to:

• HVAC system failures due to short circuits or incorrect connections.

• Reduced energy efficiency, causing higher utility bills.

• System malfunctions, such as the fan running continuously or the furnace not turning on.

• Potential damage to the HVAC unit, leading to expensive repairs or replacements.

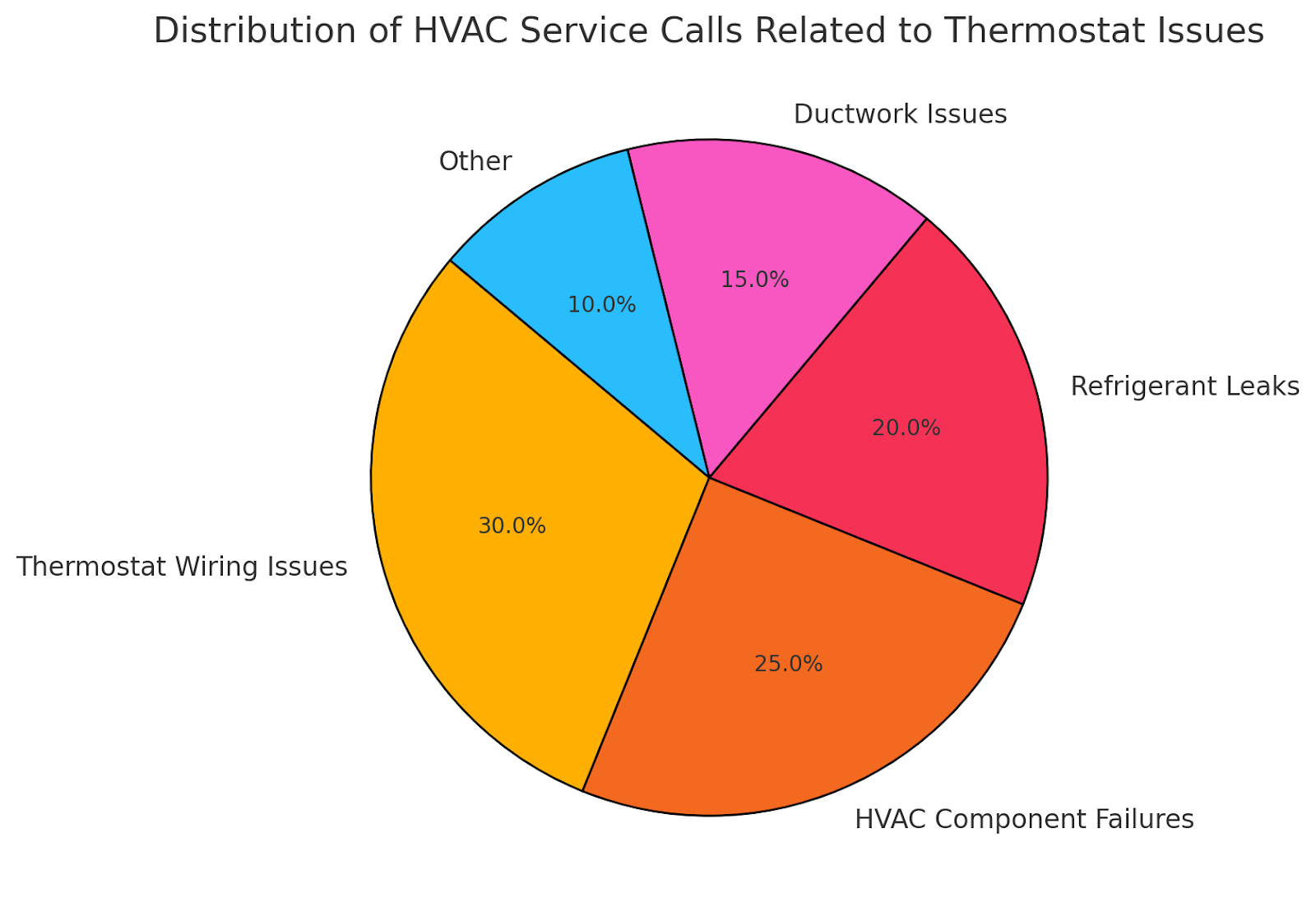

Market Statistics on Thermostat Wiring Issues in the USA

To emphasize the importance of correct thermostat wiring, here are some key industry statistics:

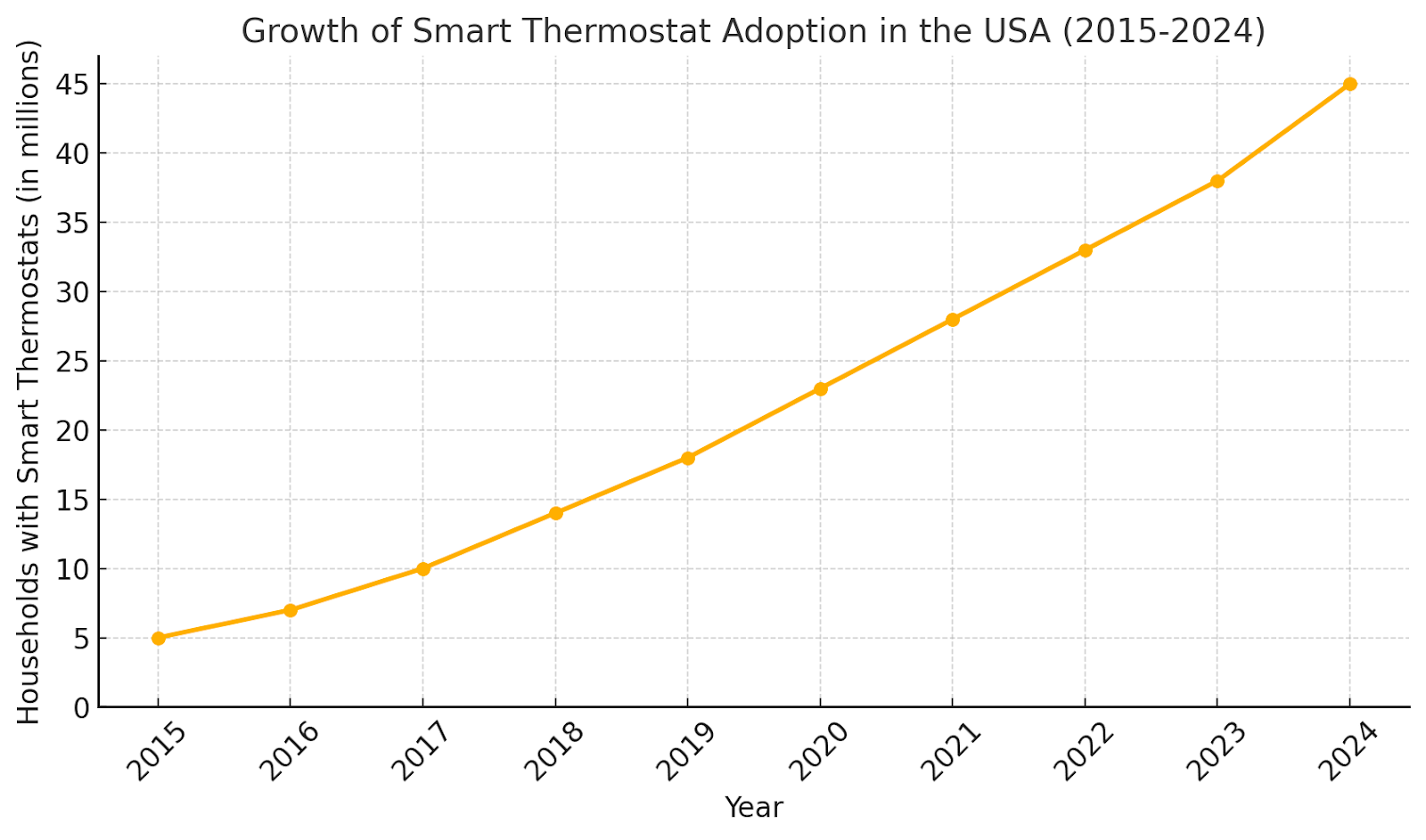

Graph: Growth of Smart Thermostat Adoption in the USA

(Insert a graph showing the adoption trend of smart thermostats in the USA from 2015 to 2024.)

2. Basics of Thermostat Wiring

Understanding the fundamentals of thermostat wiring is essential for HVAC professionals. Proper wiring ensures optimal performance, energy efficiency, and longevity of HVAC systems. This section delves into wiring color codes, terminal designations, and the distinctions between low-voltage and high-voltage thermostats.

Wiring Colors and Terminals

Thermostat wires are color-coded to standardize installations and maintenance. However, it's crucial to note that while these color codes are commonly used, variations can occur. Always verify wiring configurations during installations or service calls.

Common Thermostat Wire Colors and Their Functions:

Note: Always consult the specific HVAC system's manual, as wiring configurations can vary.

Low-Voltage vs. High-Voltage Thermostats

Thermostats are categorized based on the voltage they operate:

• Low-Voltage Thermostats (24V): Commonly used in residential and light commercial HVAC systems. They control furnaces, heat pumps, and central air conditioning units. The low voltage allows for safer and more flexible control over complex HVAC functions.

• High-Voltage Thermostats (120V/240V): Typically found in electric baseboard heaters and direct-wired electric heating systems. These thermostats handle higher voltages and are less common in standard HVAC applications.

Overview of Common Wiring Setups

Thermostat wiring configurations vary based on the HVAC system type:

• Single-Stage Heating/Cooling: Utilizes basic wiring with terminals like R, W, Y, and G. Suitable for systems with one heating and one cooling stage.

• Multi-Stage Heating/Cooling: Involves additional terminals (e.g., W2, Y2) to control multiple heating or cooling stages, enhancing temperature regulation and efficiency.

• Heat Pumps: Require specific terminals (e.g., O/B for reversing valves, AUX/E for auxiliary and emergency heat) due to their dual heating and cooling capabilities.

• Smart Thermostats: Often necessitate a common wire (C) to provide continuous power. If a C-wire isn't present, some smart thermostats offer alternative power solutions or adapters.

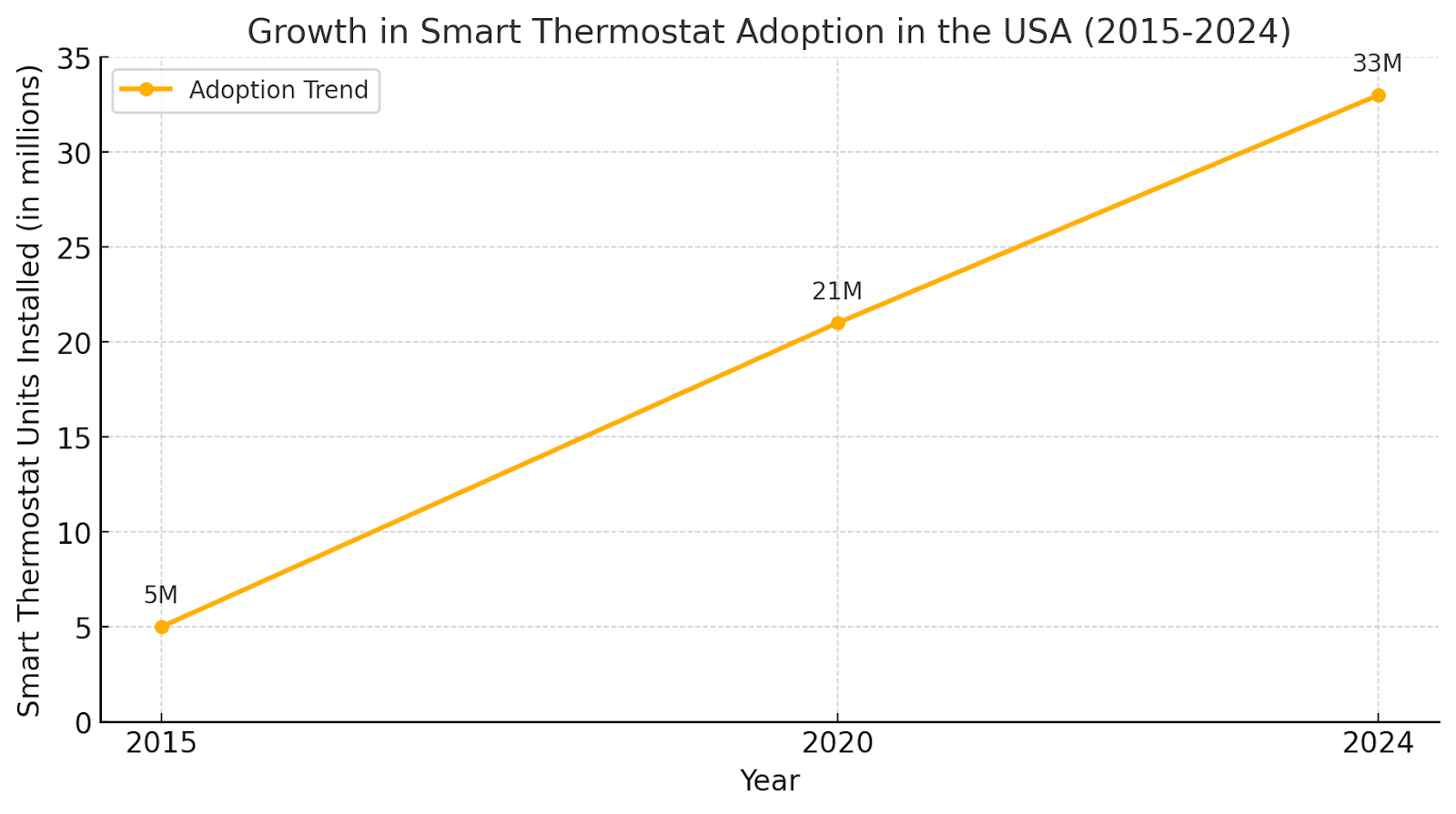

Graph: Growth in Smart Thermostat Adoption in the USA

3. Step-by-Step Thermostat Wiring Guide

Proper thermostat wiring is essential for the optimal performance of HVAC systems. This section provides a detailed, step-by-step guide to thermostat wiring, emphasizing safety precautions, necessary tools, and wiring configurations for various HVAC setups.

Tools and Equipment Needed

Before beginning the wiring process, ensure you have the following tools and equipment:

• Screwdrivers: Flat-head and Phillips-head for removing and securing screws.

• Wire Stripper/Cutter: For stripping insulation and cutting wires to the desired length.​

• Needle-Nose Pliers: To bend wires and assist in making precise connections.

• Voltage Tester: To verify that power is off before handling wires.

• Drill with Drill Bits: For creating mounting holes if necessary.​

• Level: To ensure the thermostat is mounted straight.​

• Thermostat Manufacturer's Wiring Diagram: For reference to specific wiring configurations.​

• Labels or Masking Tape and Marker: To label wires during disconnection.

Safety Precautions Before Wiring

Safety is paramount when working with electrical components. Adhere to the following precautions:

1. Turn Off Power: Before starting, switch off the power to the HVAC system at the main circuit breaker to prevent electrical shock.

2. Verify Power is Off: Use a voltage tester to confirm that no electricity is flowing to the thermostat wires.

3. Read Manufacturer's Instructions: Familiarize yourself with the thermostat's installation manual for model-specific guidelines.​

4. Avoid Short Circuits: Ensure wires do not touch each other or other components during the process.​

5. Use Appropriate Tools: Utilize tools with insulated handles to reduce the risk of electrical shock.​

Table: Safety Guidelines for Thermostat Installation

Thermostat wiring configurations vary depending on the HVAC system type. Below are common setups:

Single-Stage Heating/Cooling

Suitable for systems with one heating and one cooling stage.

• Typical Terminals:

• R (Red): 24V power supply.​

• W (White): Heating control.

• Y (Yellow): Cooling control.

• G (Green): Fan control.

Wiring Steps:

1. Turn off the power to the HVAC system.

2. Remove the existing thermostat cover to expose wires.

3. Label each wire according to its terminal designation.

4. Disconnect the wires from the old thermostat.

5. Attach the new thermostat's base to the wall, ensuring it is level.​

6. Connect each wire to the corresponding terminal on the new thermostat.​

7. Secure the thermostat cover and restore power to the system.​

Multi-Stage Heating/Cooling

For systems with multiple heating or cooling stages.​

• Additional Terminals:

• W2: Second-stage heating.​

• Y2: Second-stage cooling.​

Wiring Steps:

Follow the same steps as single-stage wiring, ensuring that W2 and Y2 wires are connected to their respective terminals.​

Heat Pumps

Heat pumps require specific wiring due to their ability to both heat and cool.​

• Additional Terminals:

• O/B: Reversing valve.​

• AUX/E: Auxiliary or emergency heat.

Wiring Steps:

1. Turn off the power to the HVAC system.​

2. Remove the existing thermostat cover to expose wires.

3. Label each wire according to its terminal designation.

4. Disconnect the wires from the old thermostat.

5. Attach the new thermostat's base to the wall, ensuring it is level.​

6. Connect each wire to the corresponding terminal on the new thermostat, paying special attention to the O/B and AUX/E terminals.​

7. Secure the thermostat cover and restore power to the system.

4. Smart Thermostat Installation

Smart thermostats have revolutionized HVAC systems by offering enhanced energy efficiency, remote accessibility, and integration with smart home ecosystems. This section delves into the features and benefits of smart thermostats, wiring requirements for popular brands, and an overview of the U.S. smart thermostat market.​

Features and Benefits of Smart Thermostats

Smart thermostats provide several advantages over traditional models:​

• Energy Efficiency: They learn user habits and adjust heating and cooling accordingly, leading to significant energy savings.​

• Remote Access: Users can control their HVAC systems via smartphones, tablets, or computers, allowing adjustments from anywhere.​

• Integration with Smart Home Systems: They seamlessly connect with devices like Amazon Alexa, Google Assistant, and Apple HomeKit, enabling voice control and automation.​

• Advanced Features: Many models offer energy usage reports, maintenance reminders, and adaptive learning to optimize comfort and efficiency.​

Wiring Requirements for Popular Smart Thermostat Brands

Proper wiring is crucial for the optimal performance of smart thermostats. Below are wiring considerations for leading brands:​

1. Google Nest Learning Thermostat:

• C-Wire Requirement: While Nest thermostats can function without a C-wire, having one ensures consistent power and prevents potential issues.

• Compatibility: Compatible with most 24V systems, including gas, electric, forced air, heat pump, and radiant.​

2. Ecobee Smart Thermostat:

• C-Wire Requirement: Requires a C-wire for installation. If absent, Ecobee provides a Power Extender Kit (PEK) to establish a C-wire connection.

• Compatibility: Works with most HVAC systems, including conventional (2H/2C), heat pump (4H/2C), and dual-fuel systems.​

3. Honeywell Home T9 Smart Thermostat:

• C-Wire Requirement: Requires a C-wire or the included C-wire adapter for proper installation.

• Compatibility: Compatible with most 24V systems, including forced air (gas, oil, electric), hot water, steam, and heat pumps with electric backup.​

Table: Comparison of Wiring Requirements Among Top Smart Thermostats

Note: Always consult the manufacturer's installation guide for specific wiring instructions.

U.S. Smart Thermostat Market Overview

The adoption of smart thermostats in the United States has been on a significant rise, driven by the increasing demand for energy-efficient solutions and smart home integrations.​

Market Size and Growth:

• 2021: The U.S. smart thermostat market was valued at approximately $1.09 billion.

• 2024: The market size reached $2.36 billion, with projections indicating continued growth.

• 2030: The U.S. market is expected to grow at a compound annual growth rate (CAGR) of 17.5%, reaching approximately $6.00 billion.

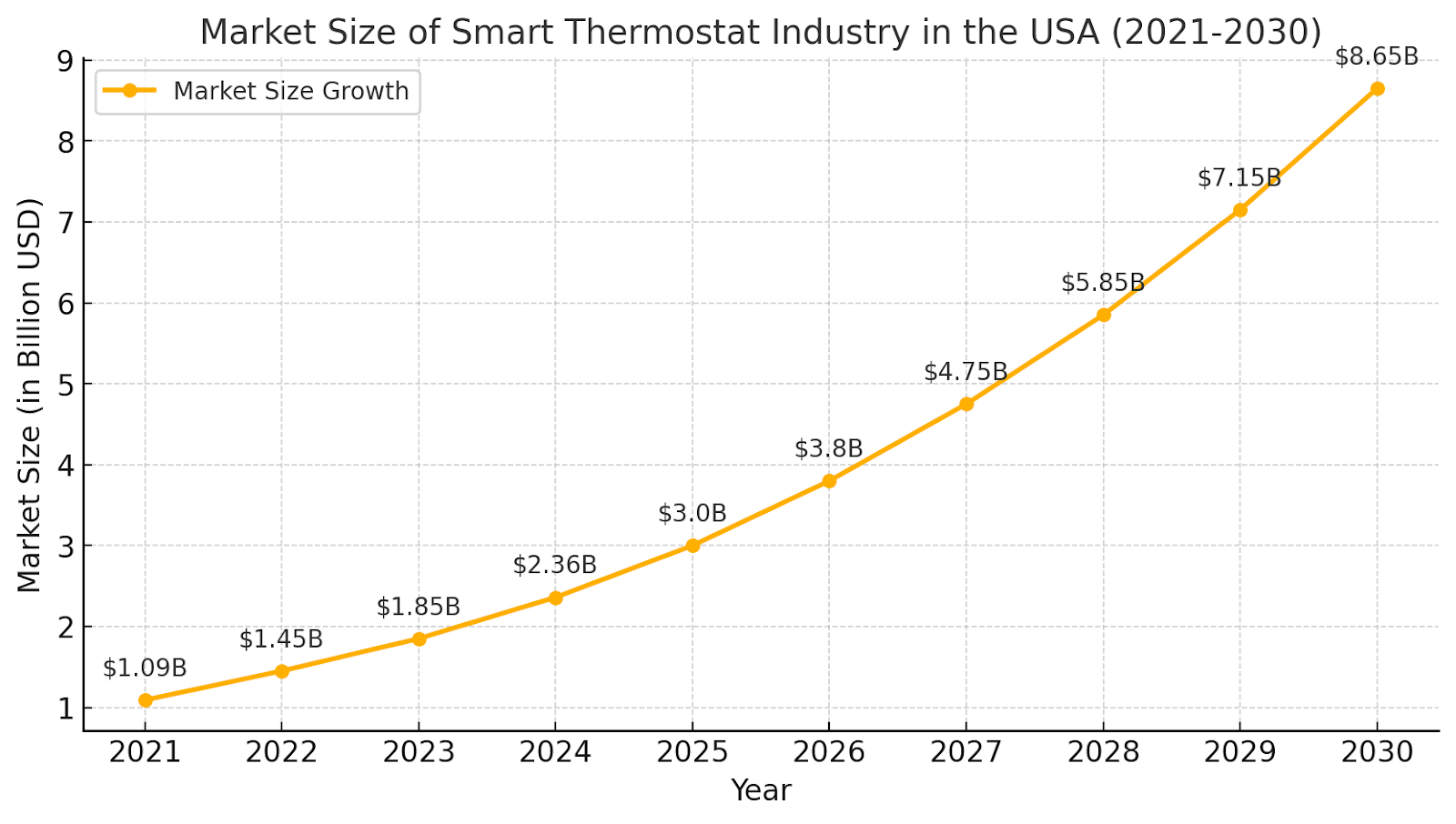

Graph: Market Size of Smart Thermostat Industry in the USA (2021-2030)

Factors Driving Growth:

• Energy Efficiency Initiatives: Government regulations and incentives promoting energy-efficient appliances have spurred consumer interest in smart thermostats.​

• Smart Home Integration: The proliferation of smart home devices has made smart thermostats a central component for homeowners seeking automation and control.​

• Cost Savings: The potential for reduced energy bills through optimized heating and cooling has attracted both residential and commercial users.

5. Troubleshooting Thermostat Wiring Issues

Proper thermostat wiring is crucial for the efficient operation of HVAC systems. Incorrect wiring can lead to various issues, from system malfunctions to complete failures. This section addresses common wiring mistakes, symptoms of incorrect wiring, and provides a step-by-step troubleshooting process.​

Common Wiring Mistakes

Understanding frequent wiring errors can help prevent potential problems:​

1. Loose or Disconnected Wires: Over time, wires can become loose or disconnected, leading to intermittent operation or system failure.

2. Incorrect Terminal Connections: Connecting wires to the wrong terminals can cause the HVAC system to malfunction or not operate at all.

3. Absence of a Common Wire (C-Wire): Many modern thermostats require a C-wire for continuous power. Without it, the thermostat may not function correctly or at all.

4. Damaged or Corroded Wires: Wires that are frayed, damaged, or corroded can impede electrical signals, leading to system inefficiencies or failures.

5. Improper Wire Stripping: Exposing too much or too little wire during stripping can result in poor connections or potential short circuits. ​

Symptoms of Incorrect Wiring

Identifying signs of wiring issues is essential for timely intervention:​

• HVAC System Not Responding: The system fails to turn on or off as commanded by the thermostat.

• Inconsistent Temperature Regulation: The indoor environment does not match the thermostat settings, leading to discomfort.​

• Frequent System Cycling: The HVAC system turns on and off more frequently than usual, known as short cycling.​

• Unresponsive Thermostat Display: The thermostat screen is blank or unresponsive, indicating potential power issues.​

• Fan Running Continuously: The blower fan operates non-stop, regardless of thermostat settings.​

Step-by-Step Troubleshooting Process

Addressing thermostat wiring issues involves systematic steps:​

1. Turn Off Power: Before inspecting, switch off the HVAC system's power at the main circuit breaker to ensure safety.​

2. Inspect Thermostat Wiring:

Remove Thermostat Cover: Gently detach the thermostat cover to access internal wiring.

Check Wire Connections: Ensure all wires are securely connected to their respective terminals.​

Look for Signs of Damage: Identify any frayed, corroded, or disconnected wires.​

3. Verify Terminal Connections:

Consult Wiring Diagram: Refer to the thermostat's manual for correct terminal designations.​

Confirm Wire Placement: Ensure each wire matches its designated terminal (e.g., R to R, W to W).​

4. Test System Operation:

Restore Power: Turn the HVAC system's power back on.​

Set Thermostat to Different Modes: Test heating, cooling, and fan operations to verify functionality.​

Observe System Response: Ensure the HVAC system responds appropriately to thermostat commands.​

5. Seek Professional Assistance: If issues persist after troubleshooting, consult a certified HVAC technician for a comprehensive inspection.​

Table: Error Codes and Solutions for Thermostat Wiring Issues

Note: Error codes may vary by thermostat model. Always consult the manufacturer's manual for specific codes and troubleshooting steps.

6. HVAC SEO Agency’s Role in Growing HVAC Business

In today's digital landscape, having a robust online presence is crucial for HVAC businesses aiming to generate leads and increase revenue. Partnering with an HVAC SEO agency can significantly enhance your visibility, attract qualified leads, and foster business growth.​

To stay competitive in today’s digital landscape, HVAC contractors must implement effective SEO strategies. Here are some expert-backed tips for HVAC contractors to boost Google rankings: optimizing Google My Business listings, creating high-quality content targeting HVAC-related keywords, earning local backlinks, and improving website speed for better user experience.

How HVAC Businesses Can Get More Leads Through SEO

Search Engine Optimization (SEO) is a powerful tool that enables HVAC companies to appear prominently in search engine results, thereby attracting potential customers actively seeking HVAC services. Key strategies include:​

1. Local SEO Optimization: Focusing on local SEO ensures your business appears in searches specific to your service area. This involves optimizing your Google My Business profile, acquiring local backlinks, and encouraging customer reviews.

2. Keyword Research and Implementation: Identifying and incorporating relevant keywords, such as "thermostat wiring guide" and "smart thermostat installation," into your website content helps attract users searching for these specific services. ​

3. Content Creation: Developing high-quality, informative content that addresses common HVAC concerns can position your business as an industry authority and improve search rankings.

4. Mobile-Friendly Website: Ensuring your website is mobile-responsive enhances user experience and boosts your rankings on search engines. ​

5. Technical SEO: Optimizing website elements such as loading speed, site architecture, and meta tags contributes to better search engine visibility. ​

Importance of Ranking for Specific Keywords

Targeting specific keywords like "thermostat wiring guide," "smart thermostat installation," "SEO for HVAC Companies in Dallas," and "HVAC SEO Company in Fort Lauderdale" is essential for attracting targeted traffic. Ranking highly for these terms ensures that potential customers searching for these services in your area find your business first, leading to increased inquiries and conversions.​

Case Study: HVAC Company's Growth with SEO Strategies

Consider a hypothetical HVAC company in Denver that partnered with an HVAC SEO agency to enhance its online presence. By implementing a comprehensive SEO strategy, the company achieved the following results over a 12-month period:​

• Website Traffic: Increased by 150%​

• Lead Generation: Grew by 80%​

• Conversion Rate: Improved from 2% to 3.5%​

• Revenue: Boosted by 60%​

This case underscores the potential impact of effective SEO strategies on an HVAC business's growth.​

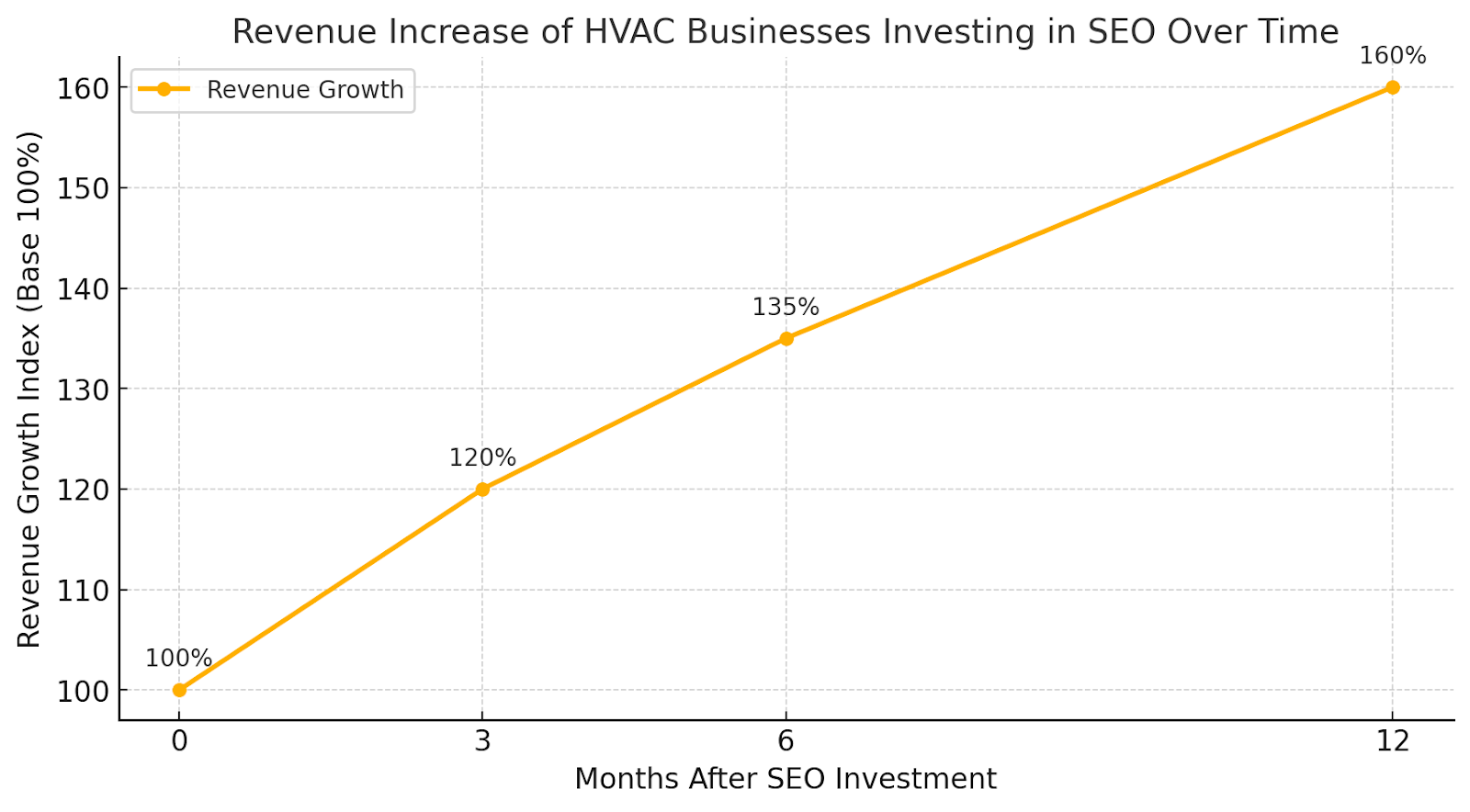

Graph: Revenue Increase of HVAC Businesses Investing in SEO Over Time

Table: ROI Comparison for HVAC Companies Using SEO vs. Traditional Marketing

Implementing SEO to get more HVAC service calls is one of the most effective strategies for increasing leads and revenue. By optimizing website content with high-intent keywords, leveraging local SEO tactics, and improving site speed, HVAC contractors can rank higher in search results, attract more customers, and convert more website visitors into booked service calls.

7. Emerging Trends in Thermostat Technology

The HVAC industry is experiencing rapid advancements in thermostat technology, driven by the integration of artificial intelligence (AI), the Internet of Things (IoT), and a focus on energy efficiency. Staying abreast of these trends is essential for HVAC professionals to provide cutting-edge solutions to clients.​

AI-Powered Thermostats

Artificial intelligence is transforming thermostats into intelligent devices that learn user behaviors and optimize HVAC operations accordingly.

• Adaptive Learning: AI-driven thermostats analyze daily routines and household patterns to create personalized heating and cooling schedules, minimizing the need for manual adjustments.

• Predictive Maintenance: By monitoring system performance and environmental data, AI can predict potential HVAC issues before they occur, reducing downtime and maintenance costs. ​

Table: Benefits of AI-Powered Thermostats

Integration with Smart Home Ecosystems

Modern thermostats are increasingly compatible with various smart home platforms, offering seamless control and automation.​

• Matter Compatibility: The introduction of Matter, a unified connectivity standard, ensures interoperability among smart devices, simplifying integration and enhancing user experience.

• Voice Assistant Integration: Many thermostats now work with voice-activated assistants like Amazon Alexa and Google Assistant, allowing for hands-free temperature adjustments.

Energy Efficiency and Sustainability

Thermostat technology advancements contribute significantly to energy conservation and environmental sustainability.​

• Smart Scheduling: Advanced thermostats enable precise programming to reduce energy usage during peak times or when occupants are away.​

• Geofencing: Utilizing smartphone location data, thermostats can adjust settings automatically when occupants are approaching or leaving home, enhancing both comfort and efficiency.​

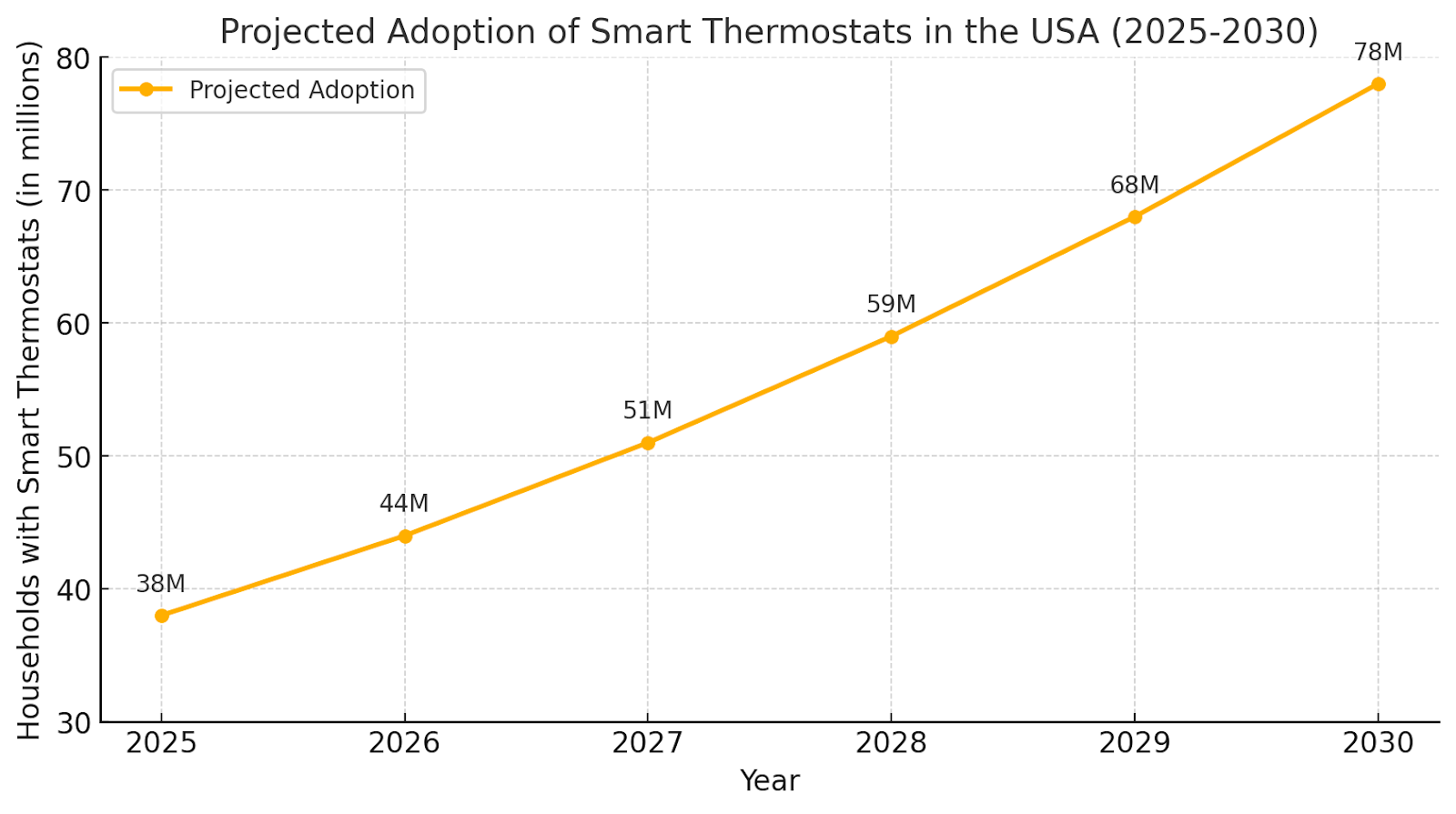

Graph: Projected Adoption of Smart Thermostats in the USA (2025-2030)

Enhanced User Interfaces

User-friendly interfaces are becoming a standard feature in modern thermostats, enhancing usability and accessibility.​

• Touchscreen Displays: High-resolution screens provide intuitive navigation and control.​

• Mobile Applications: Dedicated apps offer remote monitoring and adjustments, along with energy usage reports and maintenance alerts.

Avoiding common digital marketing pitfalls is crucial for HVAC contractors looking to increase leads. Here are 10 mistakes that are costing you HVAC leads: ignoring local SEO, failing to optimize Google My Business, using a slow website, neglecting customer reviews, not targeting high-intent keywords, lacking mobile optimization, ignoring content marketing, having poor website navigation, not using paid ads strategically, and failing to track SEO performance.

8. FAQs

General Thermostat Wiring Questions

1. How do I determine which wires go where in my thermostat?

Most thermostats use standard wire color codes (e.g., Red for power, White for heat, Yellow for cooling, Green for fan, and Blue for common wire). However, it's always best to refer to the HVAC system's wiring diagram or the old thermostat's connections before installation.

2. Can I install a smart thermostat with existing wiring?

Yes, but smart thermostats often require a C-wire for continuous power. If your existing system lacks a C-wire, you may need to install one or use a power extender kit (PEK) provided by certain brands like Ecobee.

3. What should I do if my thermostat is not working after wiring?

• Check wiring connections and ensure they are correctly secured to the appropriate terminals.

• Verify power supply by checking the circuit breaker and HVAC system.

• Inspect for a blown fuse in the furnace control board.

• Reset the thermostat and reconfigure settings.

4. Is DIY thermostat wiring safe, or should I hire a professional?

While basic wiring is manageable, hiring an HVAC professional is recommended for complex systems like multi-stage HVAC units and smart thermostats. Incorrect wiring can cause HVAC system malfunctions or even damage sensitive components.

Smart Thermostat Installation FAQs

5. What is the best smart thermostat for my HVAC system?

It depends on your needs. Here’s a quick comparison:

6. How does a smart thermostat reduce energy bills?

Smart thermostats learn your schedule and adjust temperatures automatically, reducing heating and cooling waste. According to the U.S. Department of Energy, programmable thermostats can save up to 10% annually on energy bills.

7. How do I connect my thermostat to Wi-Fi and smart home devices?

Most smart thermostats have mobile apps (Google Home, Ecobee, Honeywell Home) that guide you through Wi-Fi setup and smart home integrations with Alexa, Google Assistant, and Apple HomeKit.

HVAC SEO & Business Growth FAQs

8. How does HVAC SEO help my business attract more thermostat installation clients?

HVAC SEO improves your website’s ranking for search terms like "thermostat wiring guide" and "smart thermostat installation", making it easier for potential customers in your area to find your business. Higher rankings mean more leads and increased revenue.

9. What are the benefits of hiring an HVAC SEO Company in City?

An HVAC SEO agency optimizes your website with:

• Local SEO strategies to rank in Google Maps

• Content marketing (blog posts, guides, FAQs)

• Technical SEO for faster, mobile-friendly websites

• Lead generation tactics to drive more calls and bookings

10. How much does professional thermostat wiring cost?

• Basic thermostat installation: $75–$200

• Smart thermostat installation: $150–$400

• New wiring installation: $300–$600
  Prices vary by location and complexity.

11. How does thermostat wiring affect HVAC efficiency?

Incorrect wiring can cause short cycling, increased energy consumption, and HVAC system failures. Proper thermostat wiring ensures optimal temperature control, lower energy bills, and extended HVAC lifespan.

9. Conclusion

Thermostat wiring is a fundamental yet crucial aspect of HVAC system performance. Whether you’re dealing with a basic single-stage system, a multi-stage HVAC setup, a heat pump, or a smart thermostat installation, following proper wiring guidelines ensures optimal efficiency, energy savings, and system longevity.

This comprehensive thermostat wiring guide has covered:

• The importance of proper wiring in HVAC systems

• Common wiring setups and their differences

• Smart thermostat installation requirements

• Troubleshooting thermostat wiring issues

• The future of thermostat technology and its impact on energy efficiency

• How HVAC SEO can help businesses grow by increasing visibility and lead generation

Final Thoughts for HVAC Professionals

As technology advances, HVAC professionals must stay updated on emerging trends in thermostat wiring, including AI-driven thermostats, smart home integrations, and energy-efficient solutions. With the rise in smart thermostat adoption across the U.S., HVAC technicians who specialize in smart thermostat installation and programming will have a competitive advantage in the industry.

Leverage SEO to Grow Your HVAC Business

If you're an HVAC contractor or business owner looking to increase leads, book more thermostat installation jobs, and boost revenue, investing in SEO for HVAC Companies in Sacramento is essential. By ranking for high-intent keywords like "thermostat wiring guide" and "HVAC SEO Company in Chicago", you can dominate your local market and attract more qualified leads.

Need Help With HVAC SEO?

If you want to improve your HVAC business’s search rankings, website traffic, and lead generation, working with an expert HVAC SEO agency can make all the difference. Contact a trusted HVAC SEO Company in Milwaukee to start optimizing your online presence today.
